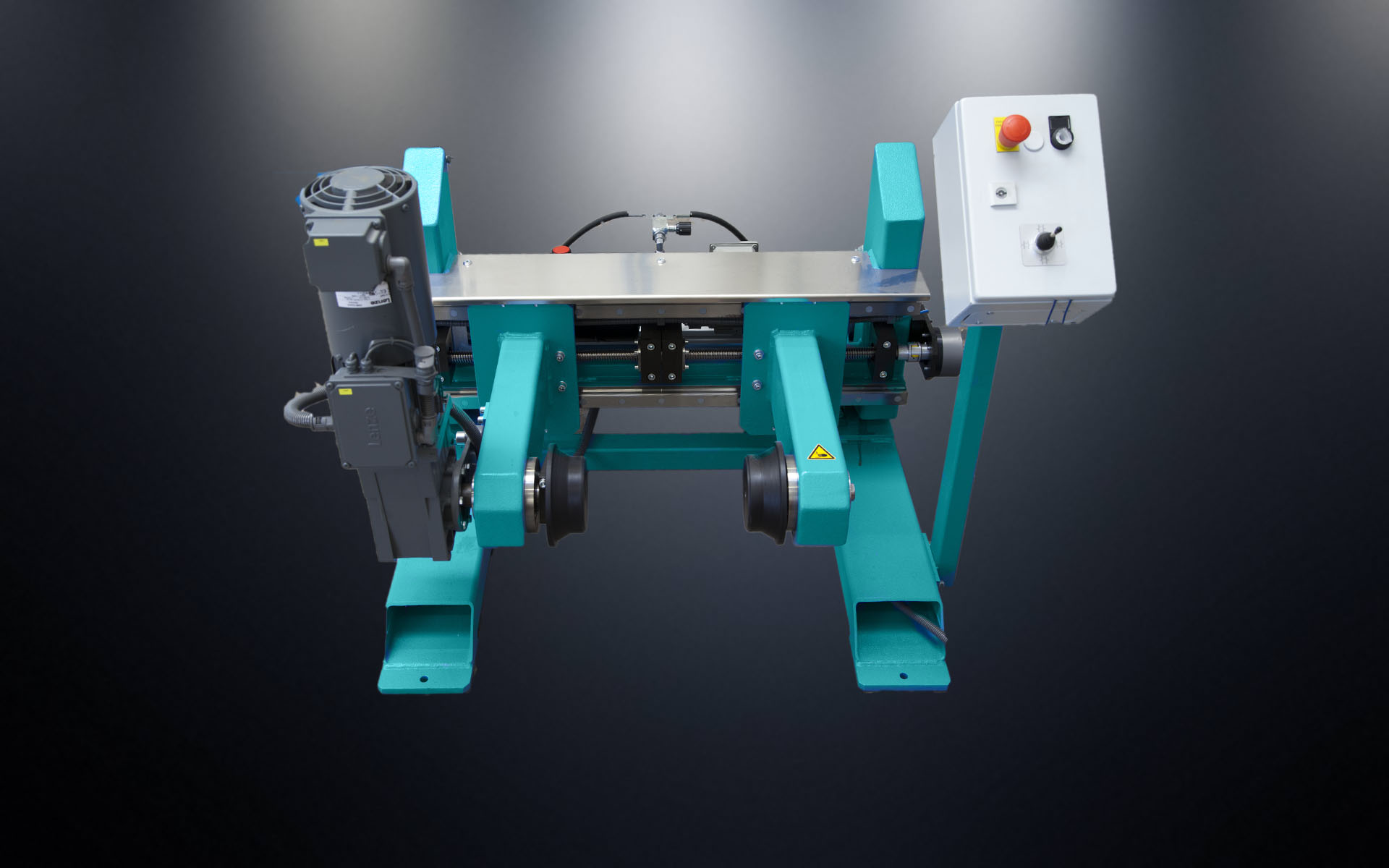

Technical data pay-off AB 630

The pay-off is used to unwind the bare, not insulated conductor. It used a pintle clamping to fix the bobbin in the machine. The bobbin is being loaded with the help of an intuitively usable joystick control. All plugged parts are very wear resistant. The construction of the machine is done in a way, which makes replacement of motor and gear very easy.

  • Size of bobbin:
  • - Flange Ø: 300 - 630 mm
  • - Width: max. 475 mm
  • -Weight: up to 900 kg
  • Winding speed: 58 ft/17.68 m
  • Material Ø range: Athens
